Shielded edge launch connectors, high-density adapters and non-mag cable assemblies

SV Microwave offers three new NPIs in stock:

• Shielded Edge Launch PCB Connectors – delivers outstanding performance with industry-leading isolation and crosstalk suppression
• High Density RF Adapters – ideal for applications that are tight on space and electrical specifications
• Non-Magnetic RF Cable Assemblies – compact 6" assemblies that maintain a maximum magnetic susceptibility of 10⁻⁵ with no field distortion

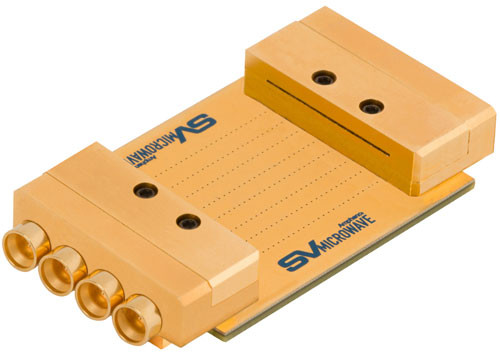

Shielded edge launch PCB connectors

The new shielded PCB connectors have been designed for environments sensitive to EMI and crosstalk. With industry-leading isolation and crosstalk suppression, these connectors can achieve 70dB min at 30GHz. This electrical separation between ports sets a new benchmark compared to traditional coaxial PCB multiports, ensuring ultra-clean signal transmission.

For optimal performance, please contact  SV for the PCB Footprint design.

Features and benefits:

• Superior isolation and crosstalk suppression
• Single, 2- and 4-port designs
• EMI Shielding
• DC – 40GHz

Applications:

• High-Speed Digital Test Systems
• 5G Communication Systems
• RADAR and Navigation Equipment
• EW Suites
• Payload and Sensor Systems
• Unmanned Platforms

Learn more about this product, its resources, and part numbers.

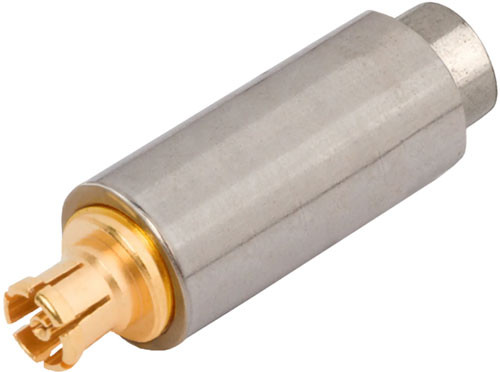

High-density RF adapters

SV's newest line of adapters is high-density, with SMP, SMPM, and SMPS series available. Operating up to 65GHz, these adapters have a blindmate push-on interface. This makes them ideal for applications that are tight on space and electrical specifications.

Features and benefits:

• Small Form Factor
• Multiple Detents available
• Push-on Interface
• DC – 65GHz

Applications:

• Mil-Aero
• Test and Instrumentation

Learn more about this product and its part numbers.

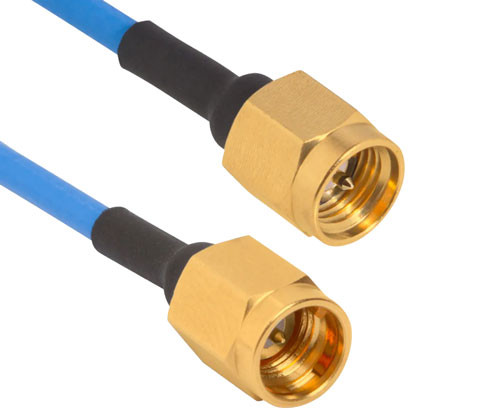

Non-magnetic RF cable assemblies

Need reliable signal integrity in environments where magnetic interference cannot be tolerated? The company’s newest addition to its Non-Magnetic product line is high-performance cable assemblies engineered for magnetically sensitive environments. Maintaining a maximum magnetic susceptibility of 10⁻⁵ with no field distortion, these cable assemblies are ideal for quantum computing, test and measurement, and defence applications.

These compact 6” assemblies deliver low-loss, high-frequency performance in a ready-to-use format with SMA and SMPM interfaces and Ø.047" or Ø.085" flexible cables.

Features and benefits:

• 100% non-magnetic materials and plating
• Low magnetic susceptibility (10⁻⁵ max) ensures no field distortion
• Available with Ø.047” and Ø.085” flexible cable diameters
• Series: SMPM and SMA
• DC up to 40GHz

Applications:

• Quantum computing
• Aerospace and military systems operating in magnetically sensitive zones
• Lab testing and prototyping with magnetic-field-sensitive components

Learn more about this product, its resources, and part numbers.
